| Place of Origin: | Beijing, China |
|---|---|
| Model Number: | 03023XKA CE-L48XS-FD |
| Minimum Order Quantity: | 2 pieces |
| Price: | $2,200.00/pieces >=2 pieces |
| Packaging Details: | New Original Packing |
| Supply Ability: | 100 Piece/Pieces per Quarter |
| Products Status: | Stock | Type: | Wired |
|---|---|---|---|
| Kind: | External | Transmission Rate: | 1000Mbps |
| Highlight: | 03024DXF Gigabit Ethernet Switch,CE12808 Gigabit Ethernet Switch,CE12804 |
||

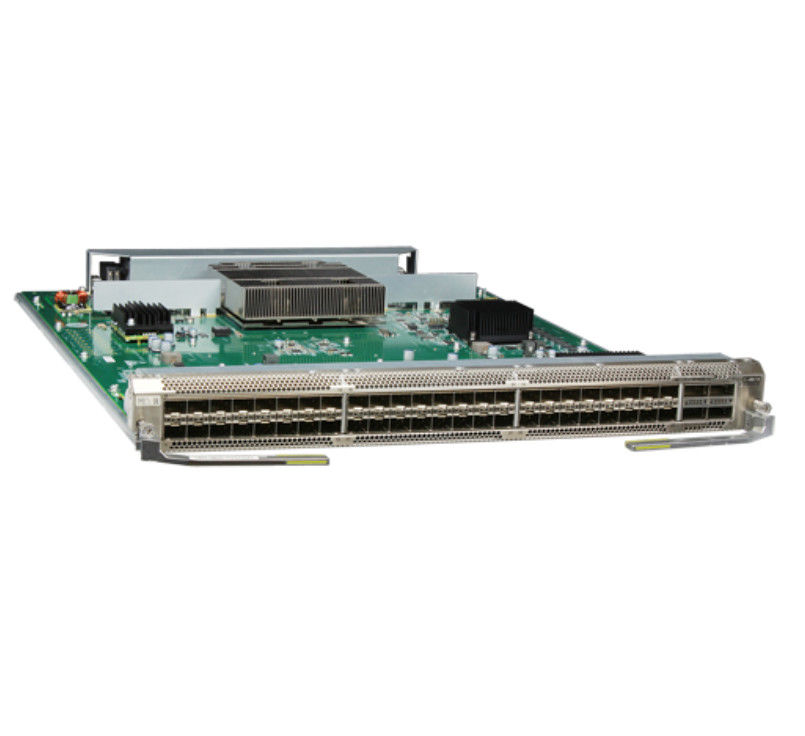

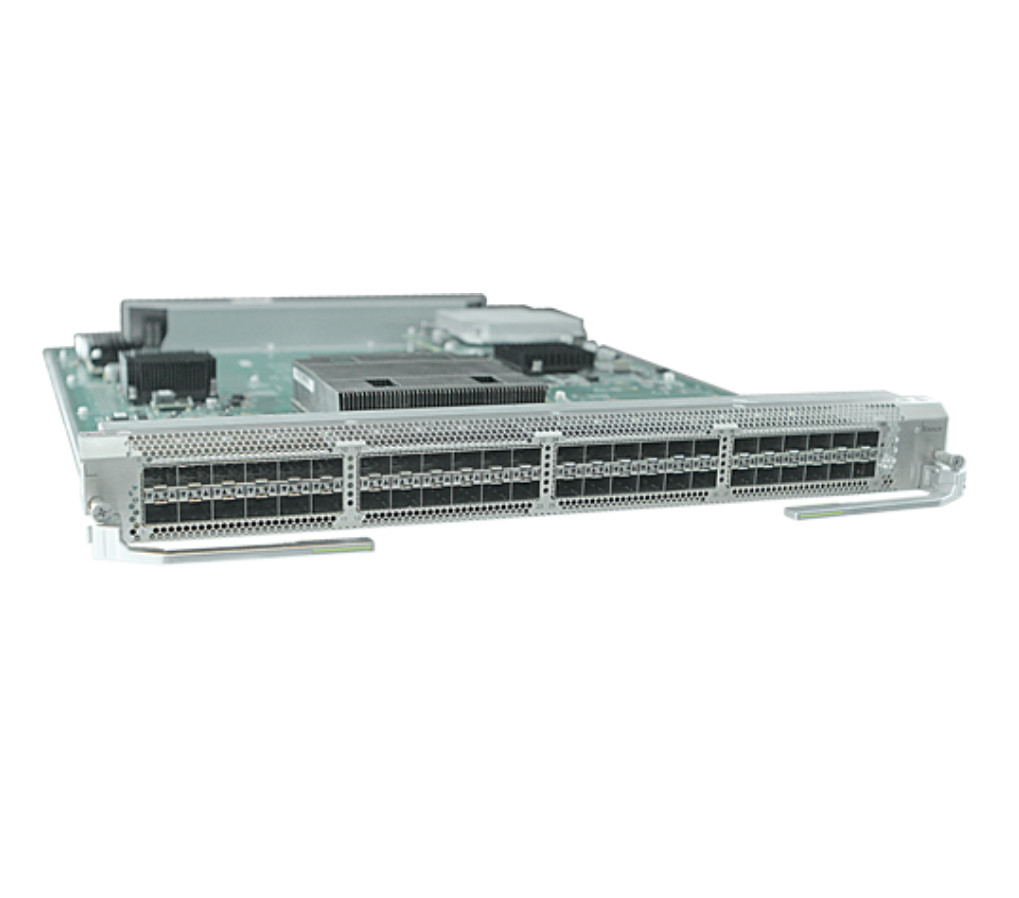

03024DXF CE-L48XS-FG 48 Port 10GBASE-X Interface Card Gigabit Ethernet Switch For CE12804/CE12808/CE12812/CE12816
|
CE-L48XS-FG (48-Port 10GBASE-X Interface Card (FG, SFP+))
|
|
|
Introduction
|
|
|
The CE-L48XS-FG provide 48 10GE optical ports for data access and processing.
|
|
|
The CE-L48XS-FG can be installed in:
|
|
|
Slots 1 to 4 of the CE12804 chassis, as shown in Slot layout in the CE12804 chassis
|
|
|
Slots 1 to 8 of the CE12808 chassis, as shown in Slot layout in the CE12808 chassis
|
|
|
Slots 1 to 12 of the CE12812 chassis, as shown in Slot layout in the CE12812 chassis
|
|
|
Slots 1 to 16 of the CE12816 chassis, as shown in Slot layout in the CE12816 chassis
|
|
|
Slots 1 to 4 of the CE12804S chassis, as shown in Slot layout in the CE12804S chassis
|
|
|
Slots 1 to 8 of the CE12808S chassis, as shown in Slot layout in the CE12808S chassis
|
|
|
Functions and features
|
|
|
Function and Feature
|
Description
|
|
Basic function
|
The CE-L48XS-FG provide data packet processing and traffic management on 48 10GE optical ports.
|
|
Maximum port density
|
If all LPUs are CE-L48XS-FG cards:
|
|
The CE12804/CE12804S chassis provides a maximum of 192 10GE optical ports.
|
|
|
The CE12808/CE12808S chassis provides a maximum of 384 10GEoptical ports.
|
|
|
The CE12812 chassis provides a maximum of 576 10GE optical ports.
|
|
|
The CE12816 chassis provides a maximum of 768 10GEGE optical ports.
|
|
|
High 10GE/GE port density (48x10GE/GE)
|
When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, and can work with 10GE Twinax high-speed cables or
AOC cables. |
|
The CE-L48XS-FG card, optical ports card cannot work in GE mode.
|
|
