| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | Supermicro |
| Model Number: | SYS-2029TP-HC1R, SYS-2029U-E1CR4, SYS-2029P-C1RT, SYS-2029U-E1CRT |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | New Original Packing |
| Supply Ability: | 100 Piece/Pieces per Quarter |
| Type: | Rack | Processor Type: | INTEL AMD |
|---|---|---|---|
| Highlight: | 2U supermicro data storage,SuperServer supermicro data storage,SYS-2029U-E1CR4 |
||
|
Product SKUs
|
Chassis
|
|
||
|
SYS-2029U-E1CR4
|
SuperServer 2029U-E1CR4 (Black)
|

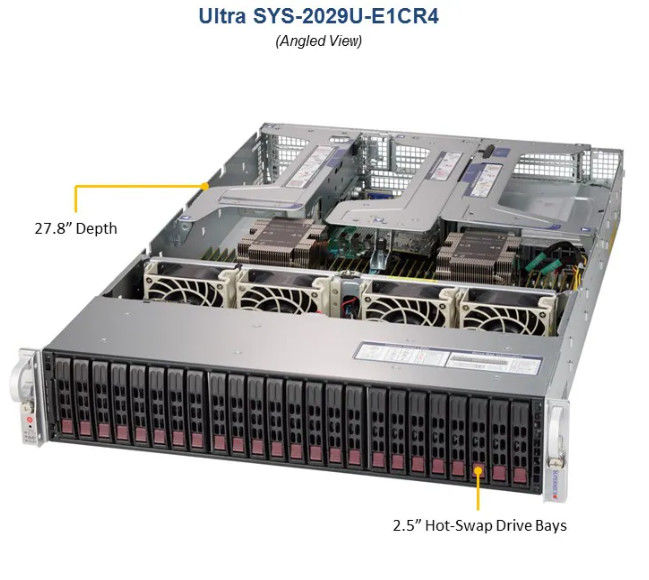

Form Factor
|
2U Rackmount
|
|
|
|
|
Model
|
CSE-219U2TS-R1K02P-T
|
|
|
Motherboard
|
|
|
|
|
|
|
Dimensions and Weight
|
|
||
|
Super X11DPU
|
|
|
||
|
|
|
Width
|
17.2" (437mm)
|
|
|
Processor
|
Height
|
3.5" (89mm)
|
|
|
|
|
Depth
|
27.76" (705.3mm)
|
|
|
|
CPU
|
Dual Socket P (LGA 3647)
|
Weight
|
Net Weight: 36 lbs (16.4 kg)
|
|
|
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
|
Gross Weight: 72 lbs (32.7 kg)
|
|
||
|
Dual UPI up to 10.4GT/s
|
Available Colors
|
Black
|
|
|
|
Support CPU TDP 70-205W
|
|
|
|
|
|
Cores
|
Up to 28 Cores
|
Front Panel
|
|
|
|
Note
|
‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
|
|
|
|
|
|
|
Buttons
|
Power On/Off button
|
|
|
System Memory
|
System Reset button
|
|
||
|
|
LEDs
|
Power status LED
|
|
|
|
Memory Capacity
|
24 DIMM slots
|
HDD activity LED
|
|
|
|
Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
|
Network activity LEDs
|
|
||
|
Supports Intel® Optane™ DCPMM††
|
System information (overheat/UID) LED
|
|
||
|
Memory Type
|
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
|
|
|
|
|
2666 ECC DDR4 NVDIMM
|
Expansion Slots
|
|
||
|
Note
|
† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
|
|
|
|
|
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
|
PCI-Express
|
1 PCI-E 3.0 x16 (FH, 10.5" L)
|
|
|
|
|
|
5 PCI-E 3.0 x8 (FH, 10.5" L)
|
|
|
|
On-Board Devices
|
1 PCI-E 3.0 x8 (LP)
|
|
||
|
|
1 PCI-E 3.0 x8 (internal LP)
|
|
||
|
Chipset
|
Intel® C621 chipset
|
|
|
|
|
SAS
|
SAS3 (12Gbps) via expander + Broadcom 3108/3008 AOC
|
|
|
|
|
Network Connectivity
|
4x 1GbE LAN ports via Intel® i350 (AOC-2UR68-i4G)
|
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support
for details.) |
|
|
|
IPMI
|
Support for Intelligent Platform Management Interface v.2.0
|
|
|
|
|
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|

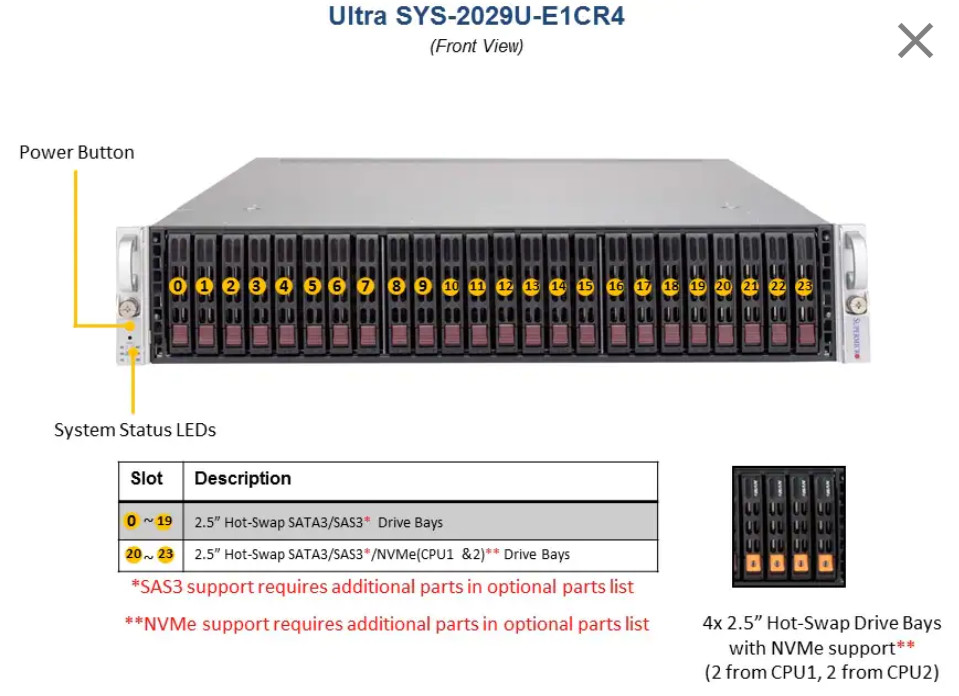

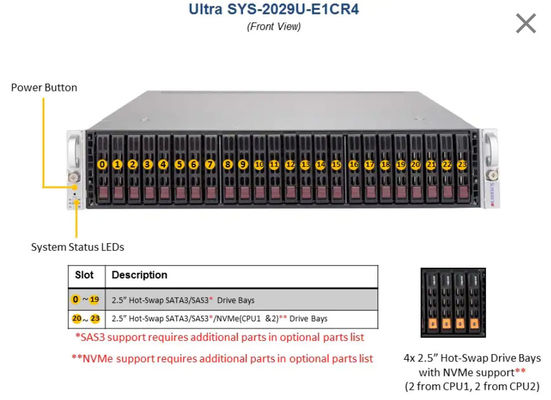

Drive Bays / Storage
|
|
||
|
Graphics
|
ASPEED AST2500 BMC
|
|
|
|
|
|
|
Hot-swap
|
24 Hot-swap 2.5" drive bays:
|
|
|
Input / Output
|
24 SAS3 via opt. AOC
|
|
||
|
|
(4 hybrid ports - opt. 4 NVMe)
|
|
||
|
SAS
|
24 SAS3 ports support via expander and storage Add-on Cards
|
|
|
|
|
LAN
|
4 RJ45 1GbE LAN ports
|
|
|
|
|
1 RJ45 Dedicated IPMI LAN port
|
Note: Storage Add-on card is required
|
|
||
|
USB
|
3 USB 3.0 ports
|
M.2
|
1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
|
|
|
(2 rear, 1 Type A)
|
2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
|
|
||
|
Video
|
1 VGA Connector
|
|
|
|
|
Serial Header
|
1 Serial header
|
System Cooling
|
|
|
|
DOM
|
2 SuperDOM (Disk on Module) ports
|
|
|
|
|
|
|
Fans
|
4 heavy duty 8cm PWM fans
|
|
|
System BIOS
|
Shroud
|
1 Air Shroud
|
|
|
|
|
|
|
|
|
|
BIOS Type
|
AMI 32Mb SPI Flash ROM
|
Power Supply
|
|
|
|
|
|
1000W Redundant Power Supplies with PMBus
|
|
|
|
Management
|
Total Output Power
|
800W: 100 – 127Vac
|
|
|
|
|
1000W: 200 – 240Vac
|
|
||
|
Software
|
Intel® Node Manager
|
1000W: 200 – 240Vdc (for CCC only)
|
|
|
|
Redfish API
|
Dimension
|
73.5 x 40 x 203 mm
|
|
|
|
IPMI 2.0
|
(W x H x L)
|
|
||
|
KVM with dedicated LAN
|
Input
|
100-127Vac / 9.8 - 7A / 50-60Hz
|
|
|
|
NMI
|
200-240Vac / 7 - 5A / 50-60Hz
|
|
||
|
SSM, SPM, SUM
|
200-240Vdc / 7 - 5A (for CCC only)
|
|
||
|
SuperDoctor® 5
|
+12V
|
Max: 66.7A / Min: 0A (100-127Vac)
|
|
|
|
Power Configurations
|
ACPI Power Management
|
Max: 83A / Min: 0A (200-240Vac)
|
|
|
|
|
|
Max: 83A / Min: 0A (200-240Vdc)
|
|
|
|
PC Health Monitoring
|
12Vsb
|
Max: 2.1A / Min: 0A
|
|
|
|
|
Output Type
|
25 Pairs Gold Finger Connector
|
|
|
|
CPU
|
Monitors for CPU Cores, Chipset Voltages, Memory.
|
Certification
|
Titanium Level
|
|
|
4+1 Phase-switching voltage regulator
|
|
|
||
|
FAN
|
Fans with tachometer monitoring
|
[ Test Report ]
|
|
|
|
Status monitor for speed control
|
|
|
|
|
|
Pulse Width Modulated (PWM) fan connectors
|
Operating Environment
|
|||
|
Temperature
|
Monitoring for CPU and chassis environment
|
|
|
|
|
Thermal Control for fan connectors
|
RoHS
|
RoHS Compliant
|
|
|
|
|
|
Environmental Spec.
|
Operating Temperature:
|
|
|
|
|
10°C ~ 35°C (50°F ~ 95°F)
|
|
|
|
|
|
Non-operating Temperature:
|
|
|
|
|
|
-40°C to 70°C (-40°F to 158°F)
|
|
|
|
|
|
Operating Relative Humidity:
|
|
|
|
|
|
8% to 90% (non-condensing)
|
|
|
|
|
|
Non-operating Relative Humidity:
|
|
|
|
|
|
5% to 95% (non-condensing)
|
|
|
