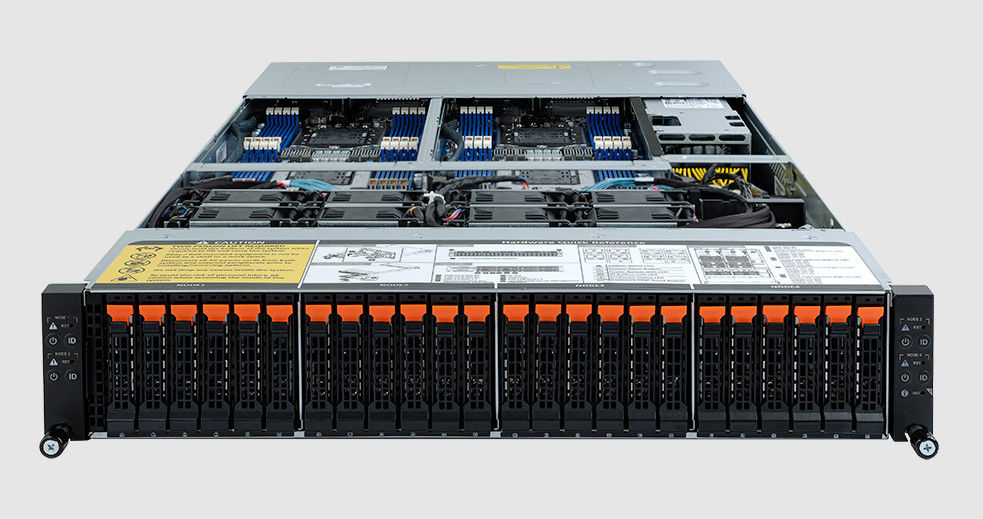

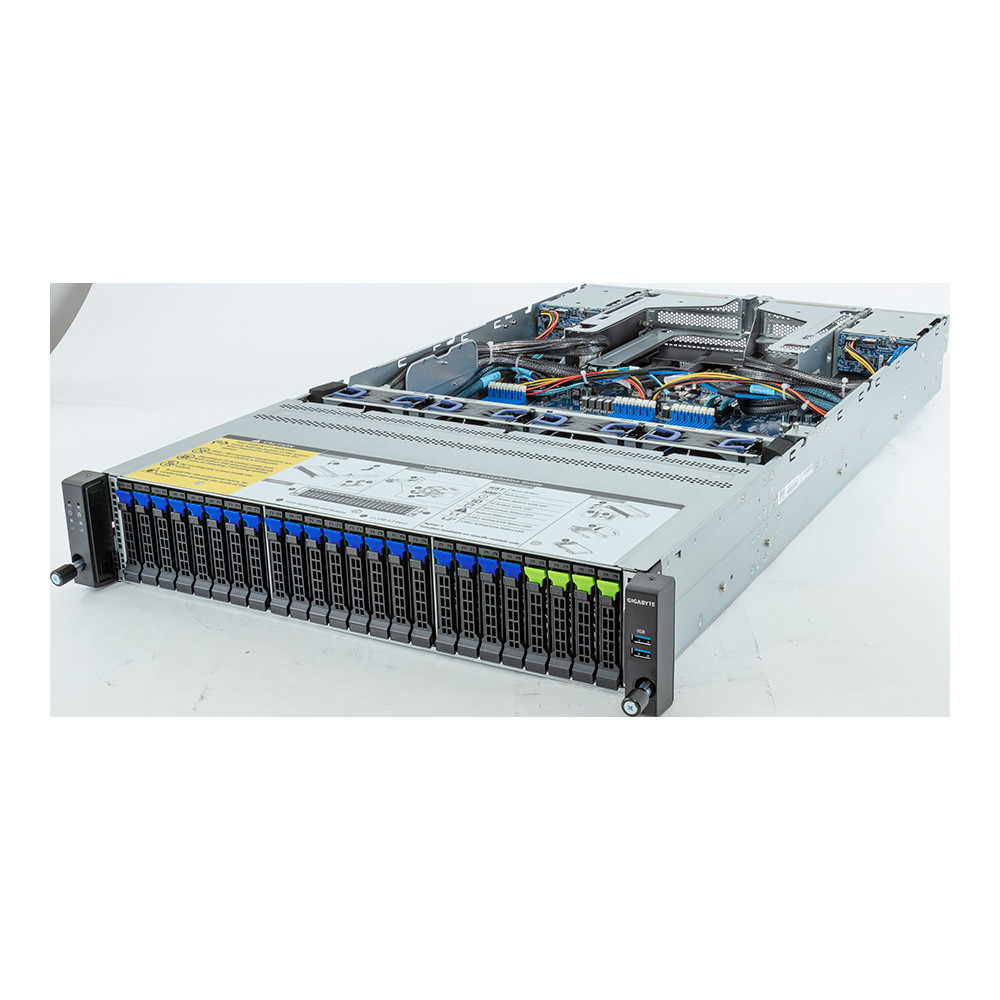

Gigabyte 2U Gigabit Ethernet Switch R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92

Gigabyte 2U Gigabit Ethernet Switch R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92
Gigabyte 2U Gigabit Ethernet Switch R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92 Gigabyte 2U Gigabit Ethernet Switch R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92 Gigabyte 2U Gigabit Ethernet Switch R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92
Basic Information
Place of Origin: China
Brand Name: Dell
Model Number: R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92 R283-S91 R283-S90 R283-Z96 R283-Z93 R283-Z91 2U
Minimum Order Quantity: 2 pieces
Packaging Details: New Original Packing
Supply Ability: 100 Piece/Pieces per Quarter
Get Best Price Contact Now
Detail Information
Type: Rack Processor Type: 4th Gen Intel Xeon Scalable Or AMD EPYC 9004
Highlight:

Gigabyte Gigabit Ethernet Switch

,

2U Gigabit Ethernet Switch

,

R283-Z92

Product Description

Gigabyte R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92 R283-S91 R283-S90 R283-Z96 R283-Z93 R283-Z91 2U
Specification

R283-Z93 (rev. AAL1)
R283-Z91 (rev. AAV2)
R283-Z90 (rev. AAD3)
Dimensions (WxHxD, mm)
2U
438 x 87 x 815
2U
438 x 87 x 815
2U
438 x 87 x 815
Motherboard
MZ93-FS0
MZ93-FS0
MZ93-FS0
CPU
AMD EPYC™ 9004 series
processor family
Dual processor, 5nm technology
Up to 96-core, 192 threads per
processor
Supports CPU 240W at
ambient 30°C
AMD EPYC™ 9004 series
processor family
Dual processor, 5nm technology
Up to 96-core, 192 threads per
processor
cTDP up to 400W
AMD EPYC™ 9004 series
processor family
Dual processor, 5nm technology
Up to 96-core, 192 threads per
processor
cTDP up to 400W
Socket
2 x LGA 6096
Socket SP5
2 x LGA 6096
Socket SP5
2 x LGA 6096
Socket SP5
Chipset
System onChip
System onChip
System onChip
Memory
24 x DIMM slots
DDR5 memory supported only
12-Channel memory
architecture per processor
RDIMMmodules up to 128GB
supported
3DS RDIMMmodules up to
256GB supported
Memory speed:Up to 4800
MHz
24 x DIMM slots
DDR5 memory supported only
12-Channel memory
architecture per processor
RDIMMmodules up to 128GB
supported
3DS RDIMMmodules up to
256GB supported
Memory speed:Up to 4800
MHz
24 x DIMM slots
DDR5 memory supported only
12-Channel memory
architecture per processor
RDIMMmodules up to 128GB
supported
3DS RDIMMmodules up to
256GB supported
Memory speed:Up to 4800
MHz
LAN
2 x 1GbE LAN ports (1 x
Intel® I350-AM2)
SupportNCSI function
1 x 10/100/1000 management
LAN
2 x 1GbE LAN ports (1 x
Intel® I350-AM2)
SupportNCSI function
1 x 10/100/1000 management
LAN
2 x 1GbE LAN ports (1 x
Intel® I350-AM2)
SupportNCSI function
1 x 10/100/1000 management
LAN
Video
Integrated inAspeed®
AST2600
2D Video Graphic Adapter with
PCIe bus interface
1920x1200@60Hz 32bpp,
DDR4 SDRAM
Integrated inAspeed®
AST2600
2D Video Graphic Adapter with
PCIe bus interface
1920x1200@60Hz 32bpp,
DDR4 SDRAM
Integrated inAspeed®
AST2600
2D Video Graphic Adapter with
PCIe bus interface
1920x1200@60Hz 32bpp,
DDR4 SDRAM
Storage
Front side:
4 x 3.5"/2.5" Gen4
NVMe/SATA/SAS hot-
swappable bays
8 x 3.5"/2.5" SATA/SAS hot-
swappable bays

Rear side:
4 x 2.5" SATA/SAS hot-
swappable bays

SAS card is required for SAS
devices support
Front side:
12 x 3.5"/2.5" SATA/SAS hot-
swappable bays

Rear side:
2 x 2.5" SATA/SAS hot-
swappable bays

BroadcomSAS35x24R
expander
Bandwidth: SATA 6Gb/s or
SAS 12Gb/s per port

a) SAS card is required to
enable the drives
b) All devices are connected
to SAS expander
c) Please select enterprise
SATA devices forSAS
expander system
Front side:
12 x 3.5"/2.5" SATA/SAS hot-
swappable bays

Rear side:
2 x 2.5" SATA/SAS hot-
swappable bays

SAS card is required for SAS
devices support
SAS
Depends on SAS Add-on card
Depends on SAS Add-on card
Depends on SAS Add-on card
RAID
N/A
N/A
N/A
Expansion Slots
RiserCardCRS101T:
- 1 x PCIe x16 (Gen5 x16)
FHHL slot, fromCPU_0

RiserCardCRS101Q:
- 1 x PCIe x16 (Gen5 x16)
FHHL slot, fromCPU_1

RiserCardCRS201I:
- 1 x PCIe x16 (Gen5 x16)
FHFL slot, fromCPU_0, for
GPUs

RiserCardCRS2227:
- 1 x PCIe x16 (Gen5 x16)
FHFL slot, fromCPU_1, for
GPUs

1 x OCP 3.0 slot withPCIe
Gen5 x16 bandwidth, from
CPU_0
Supports NCSI function

1 x OCP 3.0 slot withPCIe
Gen5 x16 bandwidth, from
CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, fromCPU_0
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x
SATAports

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, fromCPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x
SATAports

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, fromCPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 4 x
SATAports
RiserCardCRS101T:
- 1 x PCIe x16 (Gen5 x16)
FHHL slot, fromCPU_0

RiserCardCRS101Q:
- 1 x PCIe x16 (Gen5 x16)
FHHL slot, fromCPU_1

RiserCardCRS202M:
- 2 x PCIe x16 (Gen5 x16)
FHHL slots, fromCPU_0

RiserCardCRS202N:
- 2 x PCIe x16 (Gen5 x16)
FHHL slots, fromCPU_1

1 x OCP 3.0 slot withPCIe
Gen5 x16 bandwidth, from
CPU_0
Supports NCSI function

1 x OCP 3.0 slot withPCIe
Gen5 x16 bandwidth, from
CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, fromCPU_0
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, fromCPU_1
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, fromCPU_1
- Supports 2280/22110 cards
RiserCardCRS101T:
- 1 x PCIe x16 (Gen5 x16)
FHHL slot, fromCPU_0

RiserCardCRS101Q:
- 1 x PCIe x16 (Gen5 x16)
FHHL slot, fromCPU_1

RiserCardCRS202M:
- 1 x PCIe x16 (Gen5 x16)
FHHL slot, fromCPU_0
- 1 x PCIe x16 (Gen5 x8)
FHHL slot, fromCPU_1

RiserCardCRS202N:
- 1 x PCIe x16 (Gen5 x16)
FHHL slot, fromCPU_1
- 1 x PCIe x16 (Gen5 x8)
FHHL slot, fromCPU_1

1 x OCP 3.0 slot withPCIe
Gen5 x16 bandwidth, from
CPU_0
Supports NCSI function

1 x OCP 3.0 slot withPCIe
Gen5 x16 bandwidth, from
CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, fromCPU_0
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, fromCPU_1
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, fromCPU_1
- Supports 2280/22110 cards
Internal I/O
1 x TPMheader
2 x OCP 3.0 mezzanine slots
3 x M.2 slots
1 x TPMheader
2 x OCP 3.0 mezzanine slots
3 x M.2 slots
1 x TPMheader
2 x OCP 3.0 mezzanine slots
Front I/O
2 x USB 3.2 Gen1
1 x Power button withLED
1 x IDbutton withLED
1 x NMI button
1 x Reset button
2 x LAN activityLEDs
1 x HDD activityLED
1 x System status LED
2 x USB 3.2 Gen1
1 x Power button withLED
1 x IDbutton withLED
1 x NMI button
1 x Reset button
2 x LAN activityLEDs
1 x HDD activityLED
1 x System status LED
2 x USB 3.2 Gen1
1 x Power button withLED
1 x IDbutton withLED
1 x NMI button
1 x Reset button
2 x LAN activityLEDs
1 x HDD activityLED
1 x System status LED
RearI/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Backplane I/O
Front Side Backplane P/N:
9CBP20C5NR-00
Rear Side Backplane P/N:
9CBP2022NR-00
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
or SAS 12Gb/s on front side
SATA 6Gb/s or SAS 12Gb/s
on rear side
Front Side Backplane P/N:
9CBP21C1NR-00
Rear Side Backplane P/N:
9CBP2022NR-00
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
on front side
SATA 6Gb/s or SAS 12Gb/s
on rear side
Front Side Backplane P/N:
9CBP20C5NR-00
Rear Side Backplane P/N:
9CBP2022NR-00
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
or SAS 12Gb/s on front side
SATA 6Gb/s or SAS 12Gb/s
on rear side
TPM
1 x TPMheader with SPI
interface
OptionalTPM2.0 kit:CTM010
1 x TPMheader with SPI
interface
OptionalTPM2.0 kit:CTM010
1 x TPMheader with SPI
interface
OptionalTPM2.0 kit:CTM010
PowerSupply
Dual2700W (240V) 80 PLUS
Titanium redundant power
supply

AC Input:
- 100- 127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input:
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100- 127V~
+ 12V/ 84A
+ 12Vsb/ 3A
- Max2700W/ 200-240V~
+ 12V/ 225A
+ 12Vsb/ 3A

NOTE: The systempower
supply requires C19 power
cord
Dual 1600W (240V) 80 PLUS
Titanium redundant power
supply

AC Input:
- 100- 127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input:
- 240Vdc/ 8A

DC Output:
- Max 1000W/ 100- 127V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1600W/ 200-240V~
+ 12.2V/ 132A
+ 12Vsb/ 3A
Dual 1600W (240V) 80 PLUS
Platinum redundant power
supply

AC Input:
- 100- 120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input:
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100- 120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or
240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A
SystemManagement
Aspeed® AST2600
management controller
GIGABYTE Management
Console (AMI MegaRAC SP-
X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage,
RPM, Temperature,
CPU Status …etc.)
Sensor ReadingHistory
Data
FRU Information
SEL Log inLinear
Storage / Circular
Storage Policy
Hardware Inventory
FanProfile
SystemFirewall
Power Consumption
Power Control
LDAP / AD/ RADIUS
Support
Backup &Restore
Configuration
Remote
BIOS/BMC/CPLD
Update
Event LogFilter
User Management
Media Redirection
Settings
PAM Order Settings
SSL Settings
SMTP Settings
Aspeed® AST2600
management controller
GIGABYTE Management
Console (AMI MegaRAC SP-
X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage,
RPM, Temperature,
CPU Status …etc.)
Sensor ReadingHistory
Data
FRU Information
SEL Log inLinear
Storage / Circular
Storage Policy
Hardware Inventory
FanProfile
SystemFirewall
Power Consumption
Power Control
LDAP / AD/ RADIUS
Support
Backup &Restore
Configuration
Remote
BIOS/BMC/CPLD
Update
Event LogFilter
User Management
Media Redirection
Settings
PAM Order Settings
SSL Settings
SMTP Settings
Aspeed® AST2600
management controller
GIGABYTE Management
Console (AMI MegaRAC SP-
X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage,
RPM, Temperature,
CPU Status …etc.)
Sensor ReadingHistory
Data
FRU Information
SEL Log inLinear
Storage / Circular
Storage Policy
Hardware Inventory
FanProfile
SystemFirewall
Power Consumption
Power Control
LDAP / AD/ RADIUS
Support
Backup &Restore
Configuration
Remote
BIOS/BMC/CPLD
Update
Event LogFilter
User Management
Media Redirection
Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility
Please refer to OS compatibility
table in support page
Please refer to OS compatibility
table in support page
Please refer to OS compatibility
table in support page
SystemFans
4 x 80x80x38mm (18,300rpm)
4 x 80x80x38mm (18,300rpm)
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to
35°C
Operating humidity: 8%-80%
(non-condensing)
Non-operating temperature: -
40°C to 60°C
Non-operating humidity:20%-
95% (non-condensing)
Operating temperature: 10°C to
35°C
Operating humidity: 8%-80%
(non-condensing)
Non-operating temperature: -
40°C to 60°C
Non-operating humidity:20%-
95% (non-condensing)
Operating temperature: 10°C to
35°C
Operating humidity: 8%-80%
(non-condensing)
Non-operating temperature: -
40°C to 60°C
Non-operating humidity:20%-
95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
1077 x 679 x 300 mm
1077 x 679 x 300 mm
Packaging Content
1 x R283-Z93
2 x CPUheatsinks
1 x Rail kit
1 x R283-Z91
2 x CPUheatsinks
1 x Rail kit
1 x R283-Z90
2 x CPUheatsinks
1 x Rail kit
Part Numbers
- Barebone package:
6NR283Z93DR000AAL1*
- Motherboard:
9MZ93FS0UR-000
- Rail kit:25HB2-3A0206-
K0R
- CPUheatsink:25ST1-
553202-A0R
- Front panel board_CFP2001:
9CFP2001NR-00
- Backplane board_12-
port_3.5": 9CBP20C5NR-00
- Backplane board_2-
port_2.5": 9CBP2022NR-00
- Fan module:25ST2-88382T-
S1R
- Riser card - CRS101T:
9CRS101TNR-00
- Riser card - CRS101Q:
9CRS101QNR-00
- Riser card - CRS201I:
9CRS201INR-00
- Riser card - CRS2227:
9CRS2227NR-00
- M.2 to SATA card:
9CRS2810NR-00
- G-SC Module:
9CDCR114NR-00
- Mini-DP to D-Sub cable:
25CRN-200801-K1R
- Power supply:25EP0-
227000-D0S
- C19 power cord 125V/15A
(US):25CP1-018000-Q0R
(optional)
- C19 power cord 250V/16A
(EU):25CP3-01830H-Q0R
(optional)
- Barebone package:
6NR283Z91DR000AAV2*
- Motherboard:
9MZ93FS0UR-000
- Rail kit:25HB2-3A0206-
K0R
- CPUheatsink:25ST1-
15320G-A0R
- M.2 heatsink: 12SP2-
11000E-00R
- Front panel board_CFP2001:
9CFP2001NR-00
- Backplane board_12-
port_3.5": 9CBP21C1NR-00
- Backplane board_2-
port_2.5": 9CBP2022NR-00
- Fan module:25ST2-88382T-
S1R
- Riser card - CRS101T:
9CRS101TNR-00
- Riser card - CRS101Q:
9CRS101QNR-00
- Riser card - CRS202M:
9CRS202MNR-00
- Riser card - CRS202N:
9CRS202NNR-00
- G-SC Module:
9CDCR114NR-00
- Mini-DP to D-Sub cable:
25CRN-200801-K1R
- Power supply:25EP0-
21600I-G1S
- Barebone package:
6NR283Z90DR000AAD3*
- Motherboard:
9MZ93FS0UR-000
- Rail kit:25HB2-3A0206-
K0R
- CPUheatsink:25ST1-
15320G-A0R
- M.2 heatsink: 12SP2-
11000E-00R
- Front panel board_CFP2001:
9CFP2001NR-00
- Backplane board_12-
port_3.5": 9CBP20C5NR-00
- Backplane board_2-
port_2.5": 9CBP2022NR-00
- Fan module:25ST2-88382T-
S1R
- Riser card - CRS101T:
9CRS101TNR-00
- Riser card - CRS101Q:
9CRS101QNR-00
- Riser card - CRS202M:
9CRS202MNR-00
- Riser card - CRS202N:
9CRS202NNR-00
- G-SC Module:
9CDCR114NR-00
- Mini-DP to D-Sub cable:
25CRN-200801-K1R
- Power supply:25EP0-
216008-L0S





Gigabyte 2U Gigabit Ethernet Switch R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92 0
Gigabyte 2U Gigabit Ethernet Switch R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92 1
Gigabyte 2U Gigabit Ethernet Switch R283-Z92 R283-S95 R283-S94 R283-S93 R283-S92 2

Company Profile
Since 2015, Core-Net Group has been a Buyer & Seller specialized in Cisco, Fortinet, Juniper, EMC and HPE equipment, including Next-Generation Firewalls (NGFWs), routers, switches, etc. Out of 10 deals Core-Net closes, 6.5 involve System Integration projects - solution design, upscale equipment supply, hardware installation and technical support. We are home to a professional team with decade-long experience and a 20-million inventory. Please give a call or send an email for competitive pricing on what you need.
FAQ
1. who are we?
We are based in Beijing, China, start from 2002,sell to Mid East(30.00%),Western Europe(25.00%),North America(20.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),South Asia(5.00%),Domestic Market(3.00%),Oceania(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Stroage,Server,Networking Switch,Router,Wireless

4. why should you buy from us not from other suppliers?
Corenet Int'l Co., Ltd. - Your partner and expert for global IT solutions. As a tech company, Corenet is committed to both System Integration and IT distribution. We supply networking hardware like switches, routers, servers, storage and modules. The manu

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian,Korean

Tag:

industrial network switch,

gigabit network switch,

wireless network switch

Contact Details
Alisa CC

Phone Number : +86 18710168043

WhatsApp : +8618710168043

More Gigabit Ethernet Switch
HUAWEI 03023XKA CE-L48XS-FD 48 Port 10GBASE-X Interface Card FD, SFP+ For CE12804/CE12808/CE12812/CE12816

HUAWEI 03023XKA CE-L48XS-FD 48 Port 10GBASE-X Interface Card FD, SFP+ For CE12804/CE12808/CE12812/CE12816

Contact Now
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X Interface Card FD1, SFP+ For CE12804/CE12808/CE12812/CE12816

Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X Interface Card FD1, SFP+ For CE12804/CE12808/CE12812/CE12816

Contact Now
HUAWEI 03023CLU. CE-L48XS-FDA. 48-Port-10GE 2-Port-40GE 2-Port-100GE Interface Card FDA,SFP+,QSFP+,QSFP28

HUAWEI 03023CLU. CE-L48XS-FDA. 48-Port-10GE 2-Port-40GE 2-Port-100GE Interface Card FDA,SFP+,QSFP+,QSFP28

Contact Now
CloudEngine12808 Switch 03023CLS CE-L36CQ-FD 36-port 100GE Interface Card FD QSFP28

CloudEngine12808 Switch 03023CLS CE-L36CQ-FD 36-port 100GE Interface Card FD QSFP28

Contact Now
16800 Series Switch CEL36CQFD-G (36-Port 100GE Interface Card FD-G QSFP28

16800 Series Switch CEL36CQFD-G (36-Port 100GE Interface Card FD-G QSFP28

Contact Now
CE12800 Series Board CE-L36CQ-FD1 36-port 100GE Ethernet Optical Interface Board FD1 QSFP28

CE12800 Series Board CE-L36CQ-FD1 36-port 100GE Ethernet Optical Interface Board FD1 QSFP28

Contact Now
Enterprise Access Switch S5732-H48UM4Y2CZ-TV2 2.5&10G Bundle 36*100M/1/2.5G Ports

Enterprise Access Switch S5732-H48UM4Y2CZ-TV2 2.5&10G Bundle 36*100M/1/2.5G Ports

Contact Now
QFX5100-48S-3AFO - QFX Series QFX5100-48S - Switch - L3 - Verwaltet - 48 X 1 G

QFX5100-48S-3AFO - QFX Series QFX5100-48S - Switch - L3 - Verwaltet - 48 X 1 G

Contact Now
