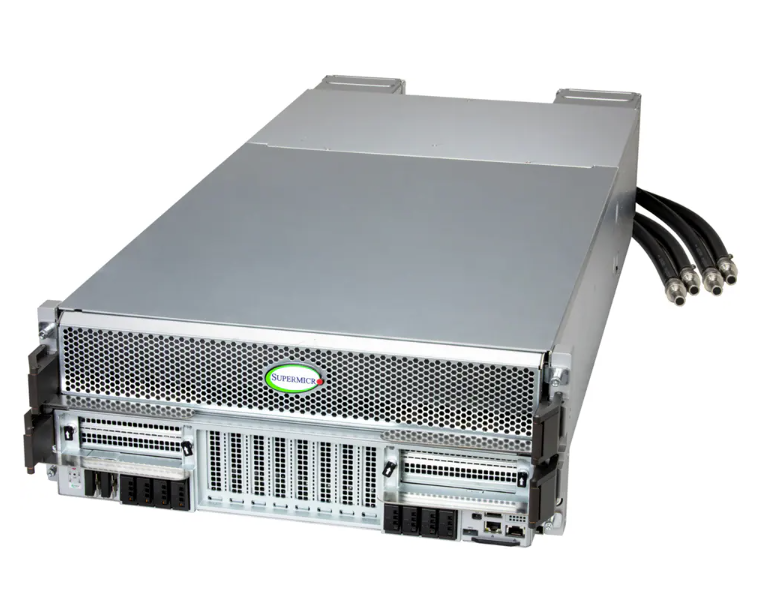

Supermicro SYS-422GS-NBRT-LCC 4U GPU Server with Intel® Xeon® 6700-series processors with P-cores

Informazioni di base

Luogo di origine:	Cina
Marca:	Supermicro
Numero di modello:	SYS-422GS-NBRT-LCC

Quantità di ordine minimo:	1/set
Tempi di consegna:	2-3 giorni di lavoro
Termini di pagamento:	T/t
Capacità di alimentazione:	50 pezzi a settimana

Miglior prezzo Contattaci

Informazioni dettagliate

Fattore di forma:	4U Rackmount	Processore:	Processori Serie Intel® Xeon® 6700 con P-core
GPU:	GPU supportato: Nvidia SXM: HGX B200 8-GPU (180 GB)	Memoria del sistema:	32 slot Dimm
Slot di espansione:	8 slot PCIe 5.0 x16 LP 2 slot PCIe 5.0 x16 FHHL	Configurazione delle baie di guida:	Predefinito: totali 8 baie
Alimentazione elettrica:	4x 6600W Ridondante (2 + 2) Livello di titanio (96%)	Colore disponibile:	Argento
Evidenziare:	Supermicro 4U GPU server , Xeon 6700-series storage server , Supermicro P-cores server with warranty

Descrizione di prodotto

Key Applications

Scientific Research, Conversational AI, Business Intelligence & Analytics, Drug Discovery, Finance Services and Fraud Detection, AI/Deep Learning Training and Inference, Large Language Model (LLM) and Generative AI, High Performance Computing (HPC), Autonomous Vehicle Technologies,

Key Features

Complete liquid-cooled rack integration is required for purchase; Dual Intel® Xeon® 6700 series processors with P-cores; 8x Nvidia B200 GPUs, 1.4TB of GPU memory space; 32x DIMMs slots, RDIMM ECC DDR5; 8x PCIe 5.0 x16 LP + 2x PCIe 5.0 x16 FHHL slots; 8x front hot-swap E1.S + 2x M.2 NVMe drive bays; 2x 10GbE, 1x Dedicated BMC/IPMI; 4x Redundant 6600W Titanium Level power supplies;

Form	Supermicro SYS-422GS-NBRT-LCC 4U GPU Server
Processors	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700-series processors with P-cores
GPU	Max GPU Count: 8 onboard GPUs Supported GPU: NVIDIA SXM: HGX B200 8-GPU (180GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™
System Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM

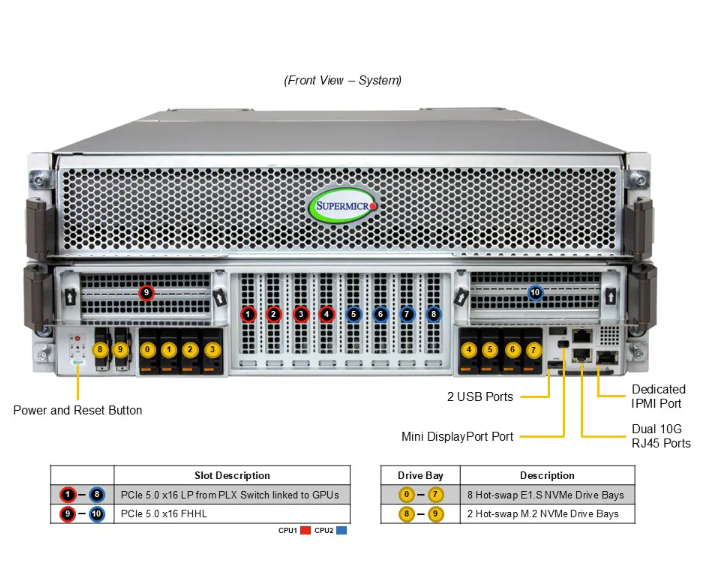

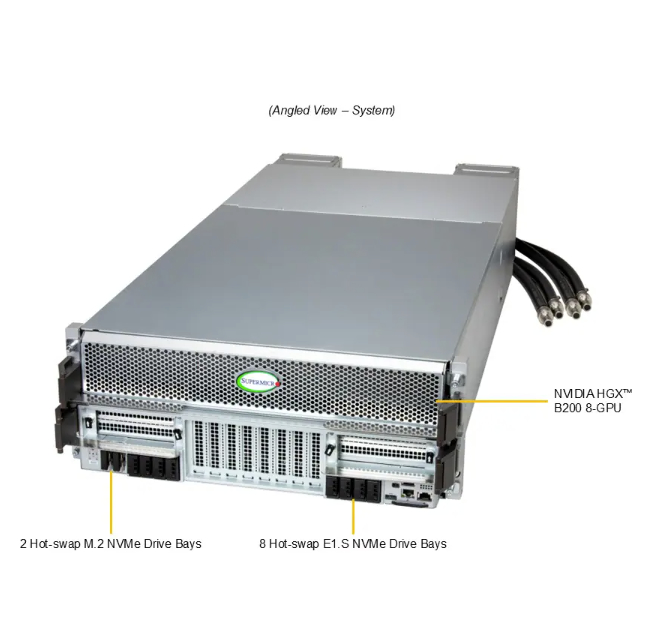

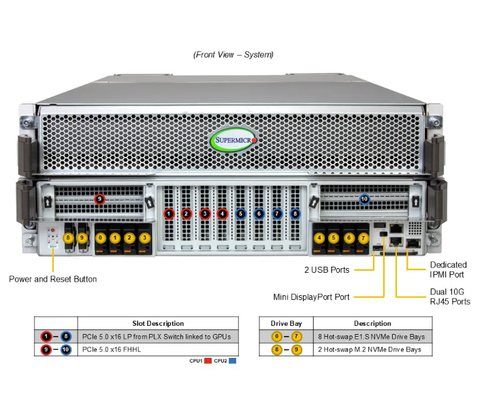

Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays M.2: 2 M.2 NVMe slots (M-key)
Expansion slots	Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots

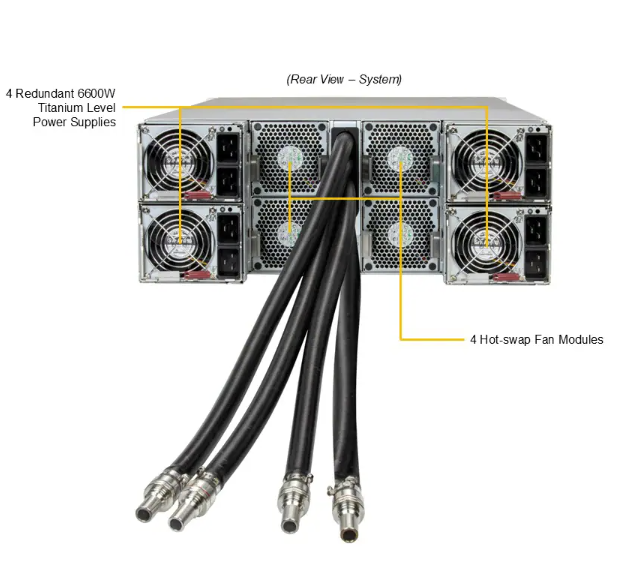

Power Supply	4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 280 lbs (127 kg) Net Weight: 236 lbs (107 kg) Available Color: Silver
