| Place of Origin: | China |
|---|---|
| Brand Name: | Supermicro |
| Model Number: | SYS-421GU-TNXR-LCC 4U GPU Server |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 4U Rackmount | Processor: | 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable Processors |
|---|---|---|---|
| GPU: | Supported GPU: NVIDIA SXM: HGX H100 4-GPU (80GB), HGX H200 4-GPU (141GB) | System Memory: | 32 DIMM Slots |
| Expansion Slots: | Default 1 PCIe 5.0 X16 LP Slot 7 PCIe 5.0 X16 LP Slots | Drive Bays Configuration: | 6 Front Hot-swap 2.5" NVMe/SATA Drive Bays |
| Power Supply: | 4x 3000W Redundant Titanium Level (96%) Power Supplies | Available Color: | Black Front & Silver Body |
| Highlight: | Supermicro 4U GPU Server,GPU SuperServer SYS-421GU-TNXR |
||
Key Applications:
High Performance Computing, AI/Deep Learning Training, Large Language Model (LLM) Natural Language Processing,
Key Features High density:
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 4800MHz ECC DDR5 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5; 8 PCIe Gen 5.0 X16 LP Slots; Flexible networking options; 2 M.2 NVMe and SATA for boot drive only 6x 2.5" Hot-swap NVMe/SATA/SAS drive bays;

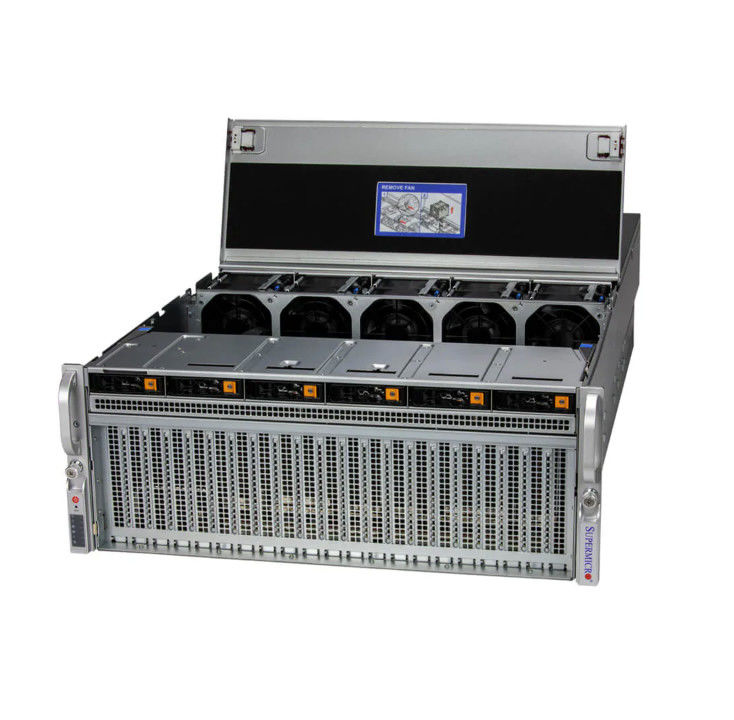

| Form | Supermicro SYS-421GU-TNXR-LCC 4U GPU Server |

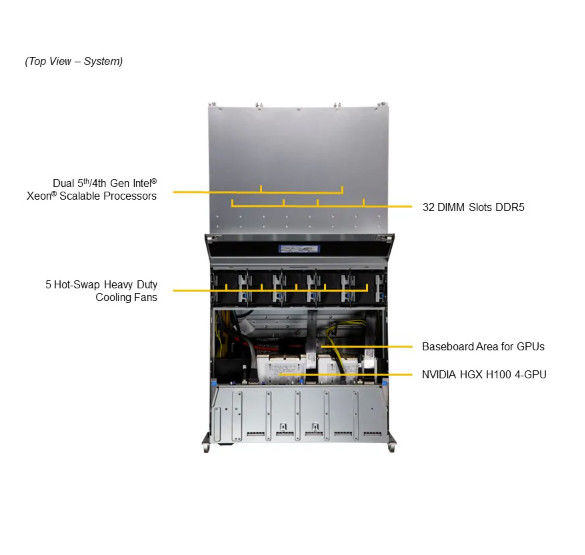

| Processors | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Up to 56C/112T; Up to 112.5MB Cache per CPU |
| GPU | Max GPU Count: 4 onboard GPUs |
| System Memory | Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 |

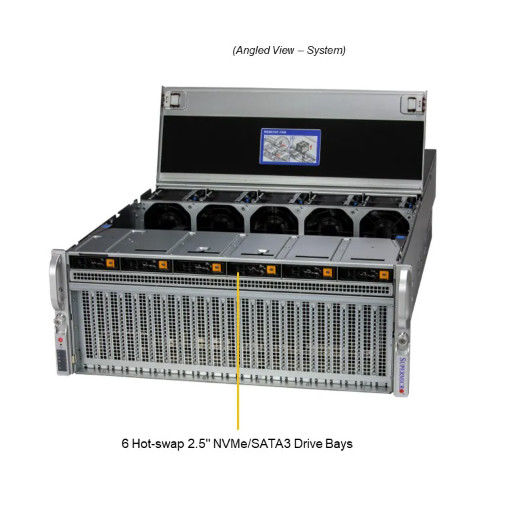

| Drive Bays Configuration | Default: Total 6 bays 6 front hot-swap 2.5" NVMe/SATA drive bays M.2: 2 M.2 NVMe/SATA slots (M-key) |
| Expansion slots | Default |
| Power Supply | 4x 3000W Redundant Titanium Level (96%) power supplies |
| Dimensions and Weight | Weight: Gross Weight: 140 lbs (64 kg) |
