| Place of Origin: | China |
|---|---|
| Brand Name: | HPE |
| Model Number: | DL360 Gen12 |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 1U Rack Server | Processor Type: | Intel |
|---|---|---|---|
| Processor Family: | Intel® Xeon® 6 Scalable Processors | Processor Core Available: | 8 To 144 Core, Depending On Processor |
| Processor Cache: | 48 MB To 336 MB L3 Cache, Depending On Processor | Processor Number: | 1 Or 2 |
| Processor Speed: | 4.0 GHz Maximum, Depending On Processor | Maximum Memory: | 8 TB With 256 GB DDR5 |
| Memory Slots: | 32 DDR5 DIMM Slots (16 Per Processor) | Memory Type: | HPE DDR5 Smart Memory |

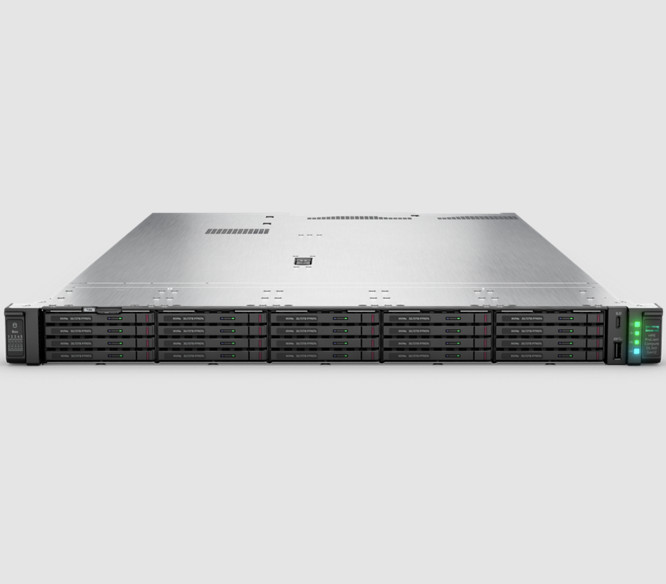

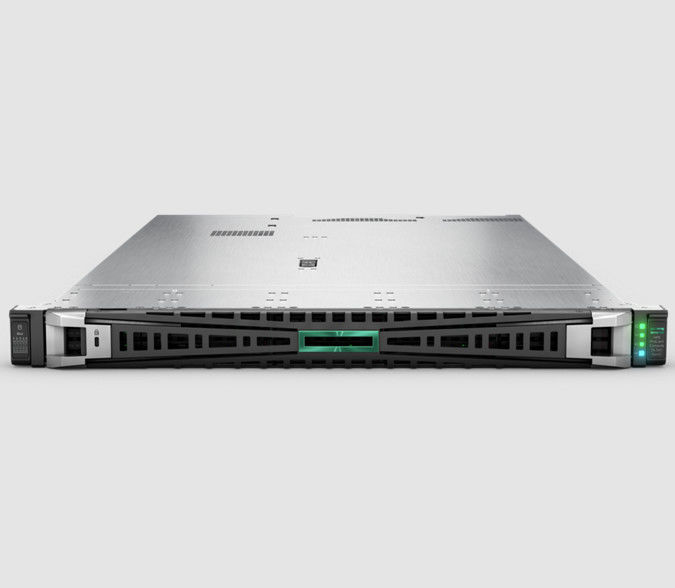

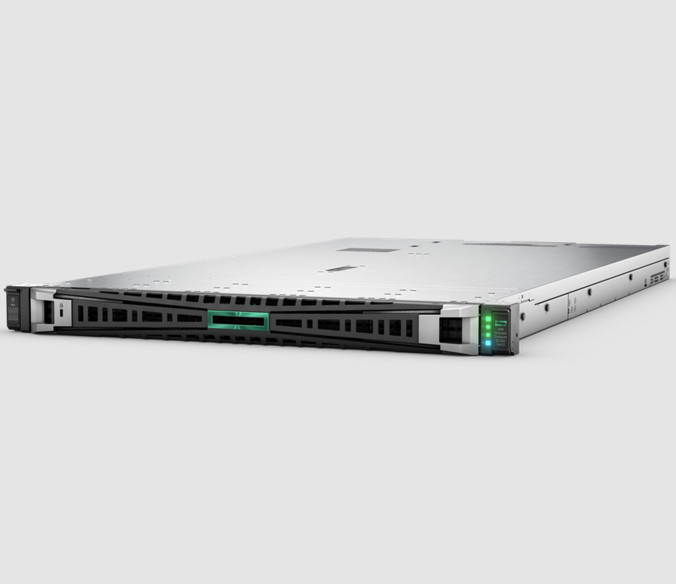

| Form | HPE ProLiant DL360 Gen12 1U 2P Rack Server |
| Processors |
Intel® Xeon® 6 Scalable processors 8 to 144 core 48 MB to 336 MB L3 cache 4.0 GHz maximum |
| Maximum memory |
8 TB with 256 GB DDR5 |
| Drive supported |
Up to 4 LFF SAS/SATA HDDs or SSDs, optional 1 OS Boot device (Internal, external accessible from rear wall); Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.3 SSDs, optional 1 OS Boot device (Internal, external accessible from rear wall); Up to 10 SFF/20 E3.S to be mixed, optional 1 OS Boot Device (Internal, external accessible from rear wall or front cage), Optional 2 front OCP NICs |
| Power supply type |

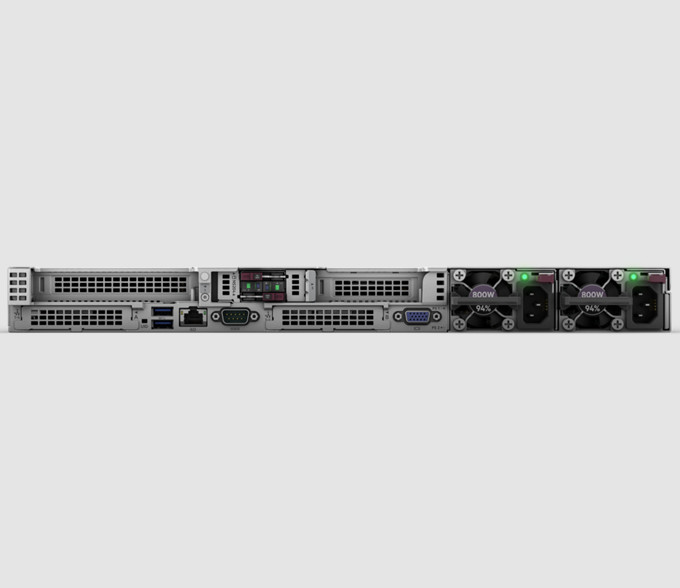

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit |
| Expansion slots |
Maximum 3 PCIe Gen5 slots (x16 lanes/each) & Maximum 2 OCP3.0 slots (x16 lanes/each) |
| Network controller | Optional - Minimum 1 to be selected. Wide range of speeds, cabling, chipsets and form factors (PCIe stand-up adapter and OCP3.0 in rear/front). Please see QuickSpecs for network card choices. |
